Glass Road
Studs
Glass Pavement Markers
Street Road Curb Pavement
Studs Markers
Optical glass raised
pavement markers
Optical glass pavement markers
The Most Affordable, Efficient and Economical Optical Curb Raised Pavement
Markers
The optical principle of the
curb raised marker
allows 360º visibility by bending and returning incoming lightbeams. These beams project a radiant crystal light signal back to the driver visually influencing the perspective
and depth of a roadways curvatures.
Distinguish a roads contour
Opti-Curb raised markers
have been exclusively developed
to illuminate and outline all types
of concrete and stone curbing
creating a full visual outlining of a
roads contours.
Opti-curbs optical raised
markers
characteristics allows avehicles light to stay in contact
with the dome until the vehicle has
passed the marker allowing the
driver to never leave its entrance
angle.
Using optics as its light source illuminates
curbs and medians regardless of the
vehicles oncoming direction.
Curb Markers
designed specifically to reflect light back to anapproaching vehicle regardless of its oncoming direction.
• 360º Visibility
• Compact
• Maintenance free
• Easy installation
• No adhesive required
• Resilient
• Fits all curbing
OPTI-CURB OPTICAL OMNI-REACTIONAL CURB MARKERS
OPTI-CURB Toughened Glass Raised Curb Markers
Optical Glass Curb Pavement Markers
360 Degree SUSTAINED LIGHT SIGNAL

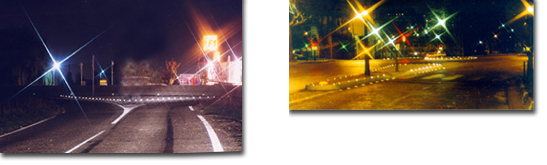

Enables medians, rotaries, merging raised curb, sidewalk curbs, intersections to come alive. Enhance and
distinguish a roads contour and curvature with a natural appearance.
Non-intrusive by day, Opti-Curb markers distinguish the next generation in curb marking technologies
Optical Glass Curb Pavement MarkersOpti-curb markers
are constructed with toughened glass allowing exceptionalresistance to outside aggressions and wear. The hardend glass surface ensures
longevity while its optical characteristics project 360º of distinctive light reflex and
visibility.
Omni-Reactional Raised Optical Curb Markers Distinctive Light
Reflex
Opti-curb markers
can be fitted on angled curbs up to 40º without effecting its reflection capabilities. Thebending of the lights curvature while entering the optical dome intensifies as the light beams return signal creates a
Focal beam directly back to the driver outlining obstructions as if they were illuminated with electricity.
Opti-curb markers
designed optics instantly transform a roads appearance making the traveling lanes easierto pass through. Illuminate hard to see medians and center islands. Designed to function up to a 40 degree incline,
Opti-curb adapts to all types of curbing for simple strait forward installations.
Opti-curb marker
has been specifically designed to be a permanent marker that requires zero maintenance.
Toughened Raised Optical Glass Curb Pavement Markers

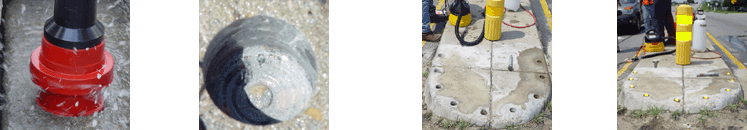

INSTALLATION
Utilizing the One-Step core drill bit, the Opti-curb pavment marker is inserted into bored concrete, asphalt stone
or granite Presenting a clean non-intrusive application. Opti-curb glass stud is fitted with a special high resistant
rubber grommet with integrated anchor eliminated the need for adhesives. Raised median such as the one on
right required 30 minutes or less to complete 9 holes and made to last the life of the curb.
Expected life span for marker: Permanent
Omni-Reactional Optical Curb Markers Distinctive Light Reflex
Optical Glass Curb Pavement Markers
Opti-curb glass studs markers
resists 15 tons preserving thereflective core of its non conductive self cleaning lens.
The Incidence Surface, protruding over the curb receives the light
beams from approaching vehicles.
Optical light reflex follows the light source until disappearance
Optical Glass Curb Pavement Marker
Omni-Reactional Marker
reflex is based on four main elements:Fitted with a special rubber locking
joint, eliminates the need for adhesives.

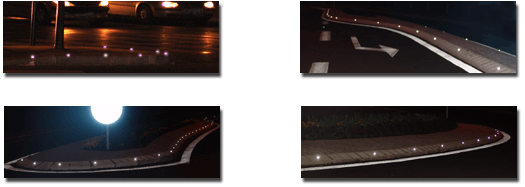

Enhance center islands with distinct clarity
A. Entrance Angle
B. Mirror
C. Optical Lens
D. Foot
B. Mirror
C. Optical Lens
D. Foot

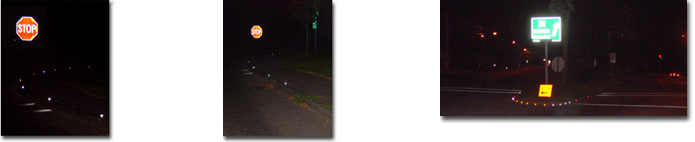

Visible from any incoming direction,
OPTI-CURB markers
reinforce the presence of curbs and straight-a waysregardless of the motorists direction.

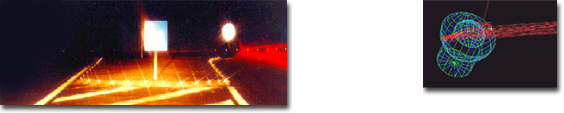

Entrance Angle of light entering the OMNI-Reactional lens (a), is redirected to a specific area of the metalized support acting as a MIRROR (b).
The beam of light is then reflected off the OPTICAL LENS (c) returning light back to its source.
The FOOT (d) supports the mirror projection lens acting as a support and adding longevity to its optical lens.
OPTI-CURB'S new reflex technology provides drivers with a precise and efficient light signal even under wet conditions.
Opti-curb's compact size allows installations under 2 minutes when utilizing Holotool or One-step drill bits.
MAINTENANCE FREE
Compact, 2 square inches
Opti-curb's Smooth surface allows self cleansing. Toughened Optical Glass Curb Raised Pavement Markers Mechanical properties provide outstanding strength, durability and wear resistance when compared to plastic marker systems.
Assure the presence of raised curbing for all approaching motorists.
Curb marking systems set a new standard in illumination.
Curb marking systems set a new standard in illumination.
Curb markers can be installed in asphalt, concrete, wood, steel, brick and most any other common substrate.
Define roadways with greater flexibility
