ARMORSTUD PAVEMENT MARKERS
Armorstud optical reflective road markers
are constructed from high quality hardened glass, a material that is harder than steel, offering enhanced mechanical properties exceeding 38 tons.Optical Toughened glass reflective road stud
technology combines incoming light signals then projects a focal beam of light from its reflective core directly back to the driver.ARMORSTUD pavement markers
provide unmatched abrasion and wear characteristics when compared to plastic pavement markers.View actual installations
OPTICAL PAVEMENT MARKERS 360 and 180 DEGREE
Two models are available, 360 degree and 180 degree visibility.
are available in all standard colors including
This new technology is setting a new standard for the pavement marking industry. Developed for the essential needs of tomorrows growing aggressive roadways.
Extremely tough and durable pavement markers require no maintenance offering a proven 5 plus year life span even on the heaviest traveled roadways.
360 degree and 180 degree visibility.
Both bi-directional and mono-directional markers
are available in all standard colors including bi-colored
configurations.This new technology is setting a new standard for the pavement marking industry. Developed for the essential needs of tomorrows growing aggressive roadways.
Extremely tough and durable pavement markers require no maintenance offering a proven 5 plus year life span even on the heaviest traveled roadways.
Armorstud pavement markers
360 degree unidirectional optical reflextechnology reflects light back to its projected source from any area within its 360
degree radius.
Mark winding roads and turns with a
distinct visible marking system for all
oncoming motorists.
Armorstuds optical reflex
technology captures and consolidates incoming light rays from its exposed dome.Light is then redirected to the metalized mirror below the ground surface. The mirror re-directs a focal beam of light directly back to the vehicle providing a precise, effective signal even in adverse road conditions.
Marker is bonded into the pavement / concrete surface protecting and eliminating mirror deterioration. These factors contribute to its longevity and optical performances which are further reinforced by its toughened glass structure ultimately guarantying the markers functionability permanently.
The
COLORS
The
markers optics
allow vehicles to never leave its entrance angle creating a sustained light signal for all approaching motorists.COLORS
Markers are available in different colors for specific and or standard
applications.
White, yellow, amber, green, red and blue.
Bi-Colors
• Amber white
• Red white
• Amber red
Use in roadways, entrance
ways, commercial applications
and residential where safety
enhancement is required.
BENEFITS
• Resistant to shocks and impacts
• Resistant to abrasion
• Resistant to UV's
• Passive to electrostatic
SPECIFICATIONS
Total height: 1.71"
Total width: 4"
Above ground height: 0.77"
Below ground depth: 0.93"
Material: Optical tempered glass
Mechanical strength: >38 tons
Visibility: Unidirectional
Optical reflection :1268 cd/fc at
0.3 degrees
MODEL 360-RM1 MODEL 360-FT1 STANDARD MODEL 180°
Standard model
Flat top model
180 degree Standard Model
MODEL 360-RM1
Standard Model
Standard Model
OPTICAL PRINCIPAL INSTALLATION 180 DEGREE ALL MODELS
Optical and color principals Methods of installation Mono-directional characteristics Choose marker
Optical and color principals Methods of installation Mono-directional characteristics Choose marker

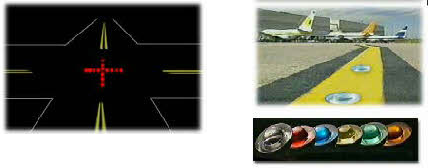

APPLICATIONS
In addition to roadway applications, both 360° and 180°
pavement markers

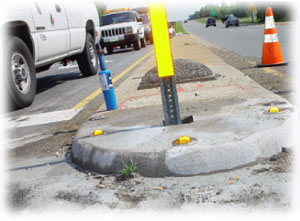

can be used to identify curbing,medians, rotaries, and islands as well as one way roads with its bi-color function, red/white amber /red.
Notating that the angled illumination characteristics of the
road pavement markers
360° and 180° as well astheir optical performances prove that the marker is capable of adapting to all types of roadways no matter what
type of light curvature rays may be present or the type of roadway they are installed in. (Highway, express
roadways, rural city, town roads and one ways).
The standard version responds to the extreme geometrics of
the specification EN 1463. Effectively, the size of the dome
above the surface is only 0.77" (19.8mm) with a diameter of
2.2" (54mm) creating an exposed surface of impact that is
inferior to its competitors.
Standard ModelSTANDARD MODEL AUTO CLEANSING CHARACTERISTICS
Road Side installations using the standard 360-RM1 marker with a
dome height of 0.77" can be used in areas / zones where mud and dirt
accumulation is problematic. The dome height of 0.77" guarantees and
permits the optical surface to maintain a high level of reflection even
though the base may be covered with mud or dust.
Rounded dome facilitates auto cleansing during rainfall.
MODEL 360-FT1
Flat Model
Flat ModelArmorstud's low profile marker (Flat Top) carries the same characteristics as 360-
RM1 and 180-RM2 models. Its protruding optical center is only 1/2 inch in height.
Flat top markers are designed for reduced noise impact and can be used in both
rural and highway applications.
Armorstuds optical reflex characteristics provides winding roads and turns a
distinct visible marking system for all oncoming motorists.
Armorstud 360-FT Flat top unidirectional optical reflex
technology reflects light back to its projected source from any
area within its 360 degree radius.
Armorstud's flat top markers are available in two models:
Bidirectional and Mono-directional.
SPECIFICATIONS
Total height: 1.41"
Total width: 4"
Above ground height: 0.51"
Below ground depth: 0.93"
Material: Optical tempered glass
Mechanical strength: >38 tons
Visibility: Unidirectional
Optical reflection :1268 cd/fc at 0.3 degrees
APPLICATIONS
Flat top version of the glass pavement marker was taken into
account for motorcyclists and for areas requiring low rumble
including foot traffic. The marker consists of an exposed surface
of only 0.51" (13 mm) with a cross form flat top providing anti
skid properties.
APPLICATIONS FOR FLAT TOP MARKERS
Utilizing the flat top marker with an exposed dome surface of only 0.51" (13mm) limits the constraints and impacts to motorcyclists. The flat anti-skid surface offers safe pedestrian passage were markers are of abundance such as crosswalks, airports and stadiums.
Flat top version of the glass pavement marker was taken into
account for motorcyclists and for areas requiring low rumble
including foot traffic. The marker consists of an exposed surface
of only 0.51" (13 mm) with a cross form flat top providing anti
skid properties.
APPLICATIONS FOR FLAT TOP MARKERS
Utilizing the flat top marker with an exposed dome surface of only 0.51" (13mm) limits the constraints and impacts to motorcyclists. The flat anti-skid surface offers safe pedestrian passage were markers are of abundance such as crosswalks, airports and stadiums.
180 DEGREE FUNCTIONALTY How does Armorstud's mono-directional properties function?
Mono-directional markers function like a single sided
pavement marker.
The carburetor and design of the marker allow entrance
angles up to 180 degrees from face front providing greater
road marking visibility when installed on winding and
merging roadways.
Armorstud 180 degree mono-directional optical reflex technology
enables the stud to perform from only half of its exposed surface.
The opposite side of the marker absorbs entering light beams with no
return.

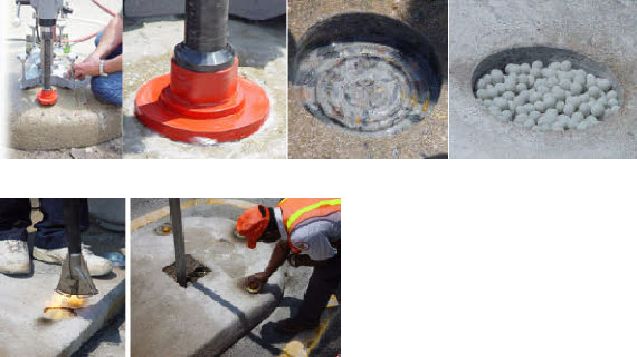

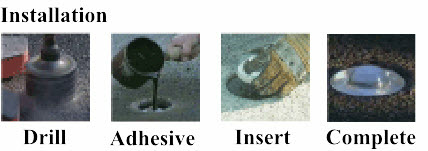

INSTALLATION METHODS
Quick, easy installation
Simply drill, clean, insert adhesive and place marker.
Installations are performed using
core-drilling
bits, preferably with Diamond tip cutters or by grindingdirectly to the surface.
Three core bits are currently available, the specially designed One-step diamond bit core that drills and grinds
the hole to a specific depth, or a common 4.3 inch drilling core that requires removal of the core and the grinder
for highway and large volume installations.
Different machines may be used depending on the
amount of markers being installed.
Installations are performed using core-drilling bits, preferably with Diamond tip cutters or by grinding directly to
the surface.
US Reflector offers three types of core bits that adapt to small or large volume installations: One-step Bit, 4.3"
Holo core bit and grinder bit.
Coring machines:
To help facilitate the installation, US Reflector offers several choices of multi-task coring rig machines that are
versatile and cost effective.
Pre-Equiped?
You may already have coring rigs, US Reflector carries various adapters for Milwaukee, Hilt, Bantam, and others
ensuring the One-Step, 4.3" holo core bit and the grinder bit properly connect to your machines drilling head.
Cutting Methods
1) Common 4.3 inch drilling core that requires core removal when drilled by means of hammer drill /chisel / hammer.
Uses: Small to medium volume installations
Uses: Small to medium volume installations
2) The specially designed One-step diamond bit core that drills and grinds the hole to the markers specific depth.
Uses: Small to medium volume installations
Uses: Small to medium volume installations
3) Carbide bit grinders for large volume pavement marker installations.
Different machines may be used depending on the amount of markers being installed. Uses: Large volume installations
Coring rigs
Different machines may be used depending on the amount of markers being installed. Uses: Large volume installations
Coring rigs

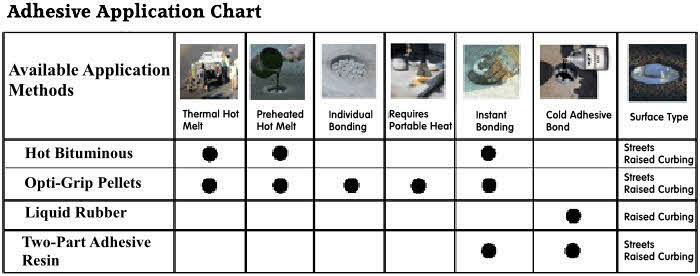

INSTALLATION ADHESIVES
Several types of adhesive are available : Hot melt bituminous, Pellet Hot melt adhesive, Liquid rubber and two part adhesive resin. Hot melt bituminous adhesive is the most popular but not always the best suited for all applications.
Several types of adhesive are available : Hot melt bituminous, Pellet Hot melt adhesive, Liquid rubber and two part adhesive resin. Hot melt bituminous adhesive is the most popular but not always the best suited for all applications.
180 degree Standard Model
OPTI-GRIP ADHESIVES
All equipment and cutting bits have been designed for quick easy installations.
Please contact us for additional assistance
Please contact us for additional assistance
DESCRIPTION
Choose a marker
Choose a marker
|
COLORS
|
PART NUMBER
|
|
STANDARD 360 Degree model
|
|
360-RM1-W
|
|
360-RM1-A
|
|
360-RM1-R
|
|
360-RM1-G
|
|
360-RM1-B
|
|
Available colors: White, Amber,
Red, Green, and Blue.
|
|
|
|
Available colors: White, Amber,
Red, Green, and Blue.
|
|
COLORS
|
PART NUMBER
|
|
STANDARD 180 Degree model
|
|
180-RM2-W
|
|
180-RM2-A
|
|
180-RM2-R
|
|
180-RM2-G
|
|
180-RM2-B
|
|
|
|
Available colors: White, Amber,
Red, Green, and Blue.
|
|
COLORS
|
PART NUMBER
|
|
FLAT TOP 360 Degree model
|
|
360-FT1-W
|
|
360-FT1-A
|
|
360-FT1-R
|
|
360-FT1-G
|
|
|
|
180-FT2-W
|
|
180-FT2-A
|
|
180-FT2-R
|
|
180-FT2-G
|
|
180-FT2-B
|
|
COLORS
|
PART NUMBER
|
|
Flattop 180 Degree model
|
|
Available colors: White, Amber,
Red, Green, and Blue.
|
|
|
|
BI COLORS
|
|
|
|
Red / White
|
360-BC-WR
|
|
Amber / Red
|
360-BC-AR
|
|
Amber / White
|
360-BC-AW
|
|
CHARACTERISTICS
|
|
|
Weight
|
1 lb
|
|
Height
|
1.196
|
|
Material
|
Tempered optical glass
|
|
Mechanical Strength
|
>38 Tons
|
|
Installation
|
Mechanical
|
|
Optical principle
|
Reflector
|
|
Reflection type
|
Omni-Reactional
|
